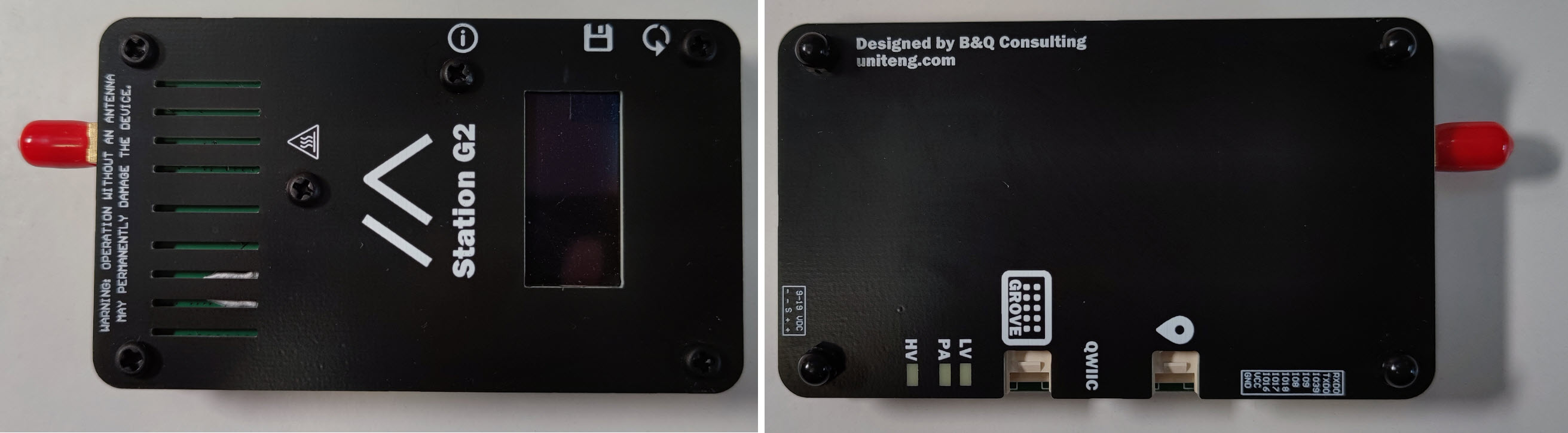

Station G2
High-power LoRa gateway with 5W transmit capability, excellent sensitivity, and robust construction for fixed or vehicle installations.
EU868: 37 dBm (5 W)
Key Features
Application Notes
- Ideal for fixed station or vehicle mounted applications
- LoRa sensitivity is 4 dB higher than most other devices thanks to an ultra-low noise figure LNA
- Main application as a base station for extended mesh networks
- Solid construction designed for permanent installations
Performance Advantages
With its high-power 5W transmitter and enhanced receiver sensitivity, the Station G2 can achieve significantly longer range than standard LoRa devices.
The ultra-low noise figure LNA provides 4 dB better sensitivity than typical LoRa devices, improving weak signal reception.
The Station G2 can be powered via USB Type-C with 15V Power Delivery support or through an external power supply accepting 9-19V DC.
This flexibility makes it suitable for permanent installations with backup power systems or mobile applications such as vehicle mounting.
As a high-power, high-sensitivity device, the Station G2 excels as a network extender when configured as a repeater or room server.
Its robust design and excellent RF performance make it the ideal backbone component for large-scale MeshCore deployments.
Detailed Specifications
| Parameter | Description |
|---|---|
| Processor | ESP32-S3 |
| LoRa Chip | SX1262 |
| LoRa Amplifier | 1 dB compression point (P1dB) of 35 dBm (3.16 W) |
| Max RF Output Power | 36.5 dBm (4.46 W) for US915 and 37 dBm (5 W) for EU868 |
| LoRa Sensitivity | 4 dB higher than most other devices thanks to an ultra-low noise figure LNA |
| Antenna Connector | Robust SMA |
| Power Supply | USB Type-C (15V PD) or external power supply 9-19VDC |
| Supported Frequency Bands | US (902-928MHz), EU_868 (869.4-869.65MHz), and several other global regions |
| Construction | Stacked PCBs with aluminum substrate PCB as heat sink |
