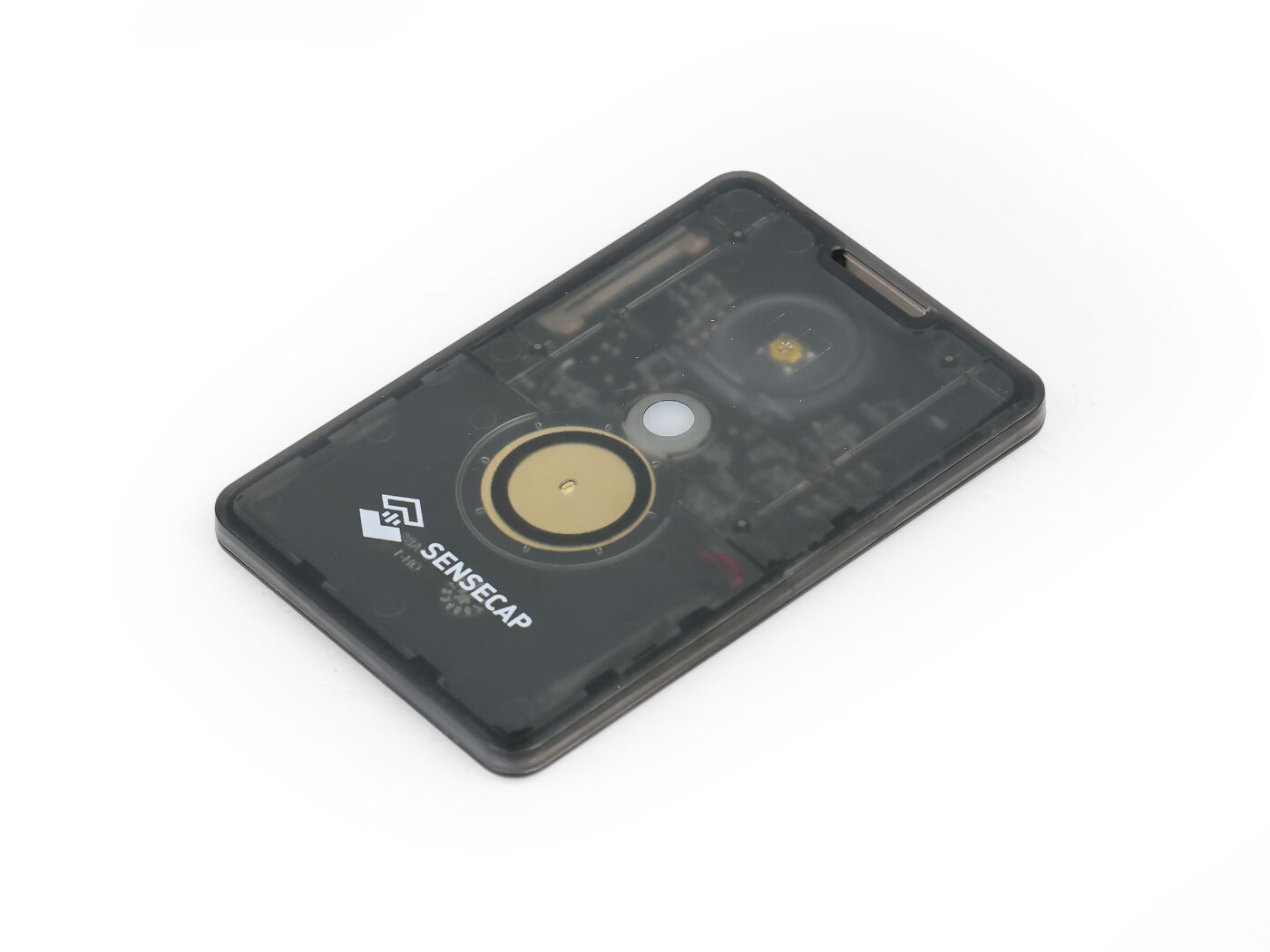

SenseCAP T1000-E
IP65-rated credit card sized tracker with LoRa, Bluetooth, GPS and integrated sensors.
Companion Radio Firmware
Repeater
Room Server
Dimensions
Credit card size, 6.5 mm thickness
Processor
Nordic nRF52840
LoRa Chip
Semtech LR1110
GPS
MediaTek AG3335 module
LoRa Frequency
863-928 MHz
Battery
700mAh Lithium
Protection
IP65 (water and dust resistant)
Interface
One button and a buzzer
Key Features
Display
Bluetooth
WiFi
GPS
Water Resistance
Temperature Sensor
Light Sensor
Accelerometer
Multi-Protocol
Battery Information
Without GPS
Up to 3 days
GPS and telemetry disabled
With GPS
About 2 days
With GPS enabled
Charging Interface
4 pogo pins for charging and API interface
Detailed Specifications
| Parameter | Description |
|---|---|
| Format | Credit card size, 6.5 mm thickness |
| Processor | Nordic nRF52840 |
| LoRa Chip | Semtech LR1110 |
| GPS | MediaTek AG3335 module |
| LoRa Frequency Range | 863-928 MHz |
| Battery | 700mAh Lithium |
| Protection | IP65 (water and dust resistant) |
| Integrated Sensors | Temperature, brightness, 3-axis accelerometer |
| Charging Interface | 4 pogo pins for charging and API interface |
| User Interface | One button and a buzzer |
| Battery Life | Up to 3 days without GPS or telemetry, about 2 days with GPS enabled |
| Protocol Compatibility | LoRa, Bluetooth, Thread and ZigBee |
| Bluetooth | Bluetooth 5.0 |
Key Applications
Compact Tracking
Credit card sized form factor makes it ideal for personal tracking applications where size matters.
Outdoor Use
IP65 water and dust resistance enables deployment in challenging outdoor environments.
Mobile Deployment
Multi-day battery life enables extended operation in field conditions without frequent recharging.
Environmental Monitoring
Built-in sensors for temperature, brightness and movement enable environmental data collection.
